Scale

Scale
calculator

Enter the real size of your building or site, choose a scale, and see exactly how large the finished model will be — in centimetres, before anything is built.

01The calculator

Real size,
model size

IReal size

The real dimensions of the building or site. Leave any box blank to drop it — width and height alone describe a single facade, all three describe the whole building.

IIScale

Every tile updates live — the figure under each is your model's size at that scale.

IIIThe arithmetic

Model size in centimetres = the real size in metres × 100, divided by the scale denominator. A 20-metre facade is 20 cm at 1:100, 40 cm at 1:50 and 10 cm at 1:200. A standard door — one metre wide, two metres tall — is 1 × 2 cm at 1:100.

AMOD builds at scales from 1:25 to 1:1000. A framed Slice is capped at 90 cm on its longest side; a full commissioned model has no limit.

In het Nederlands: schaal berekenen.

02Scale samples

Three models,
built at every scale

What those centimetres look like on a shelf. Each row is one project, photographed at each scale we built it — click any frame to open the set.

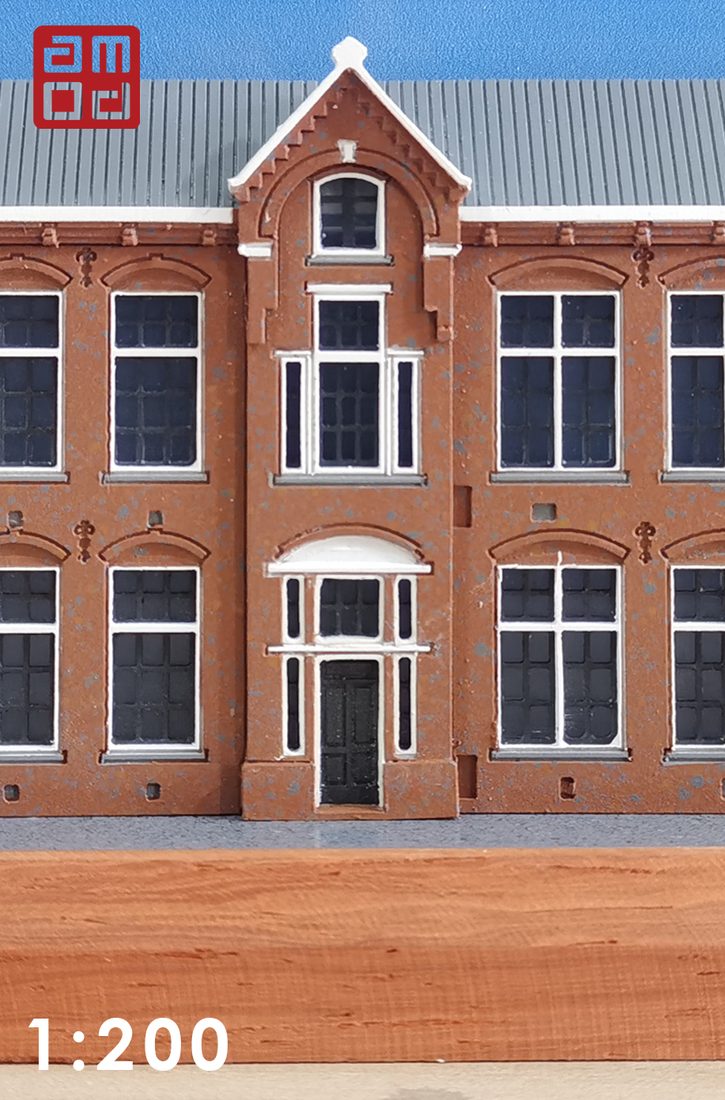

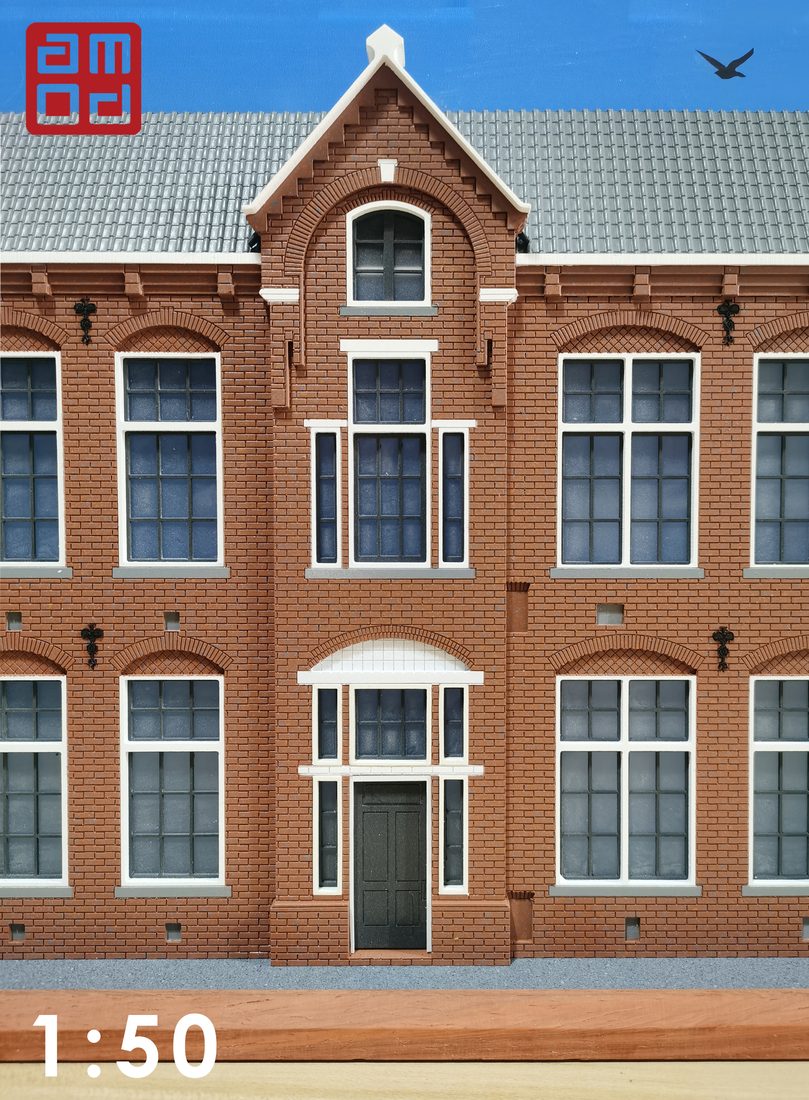

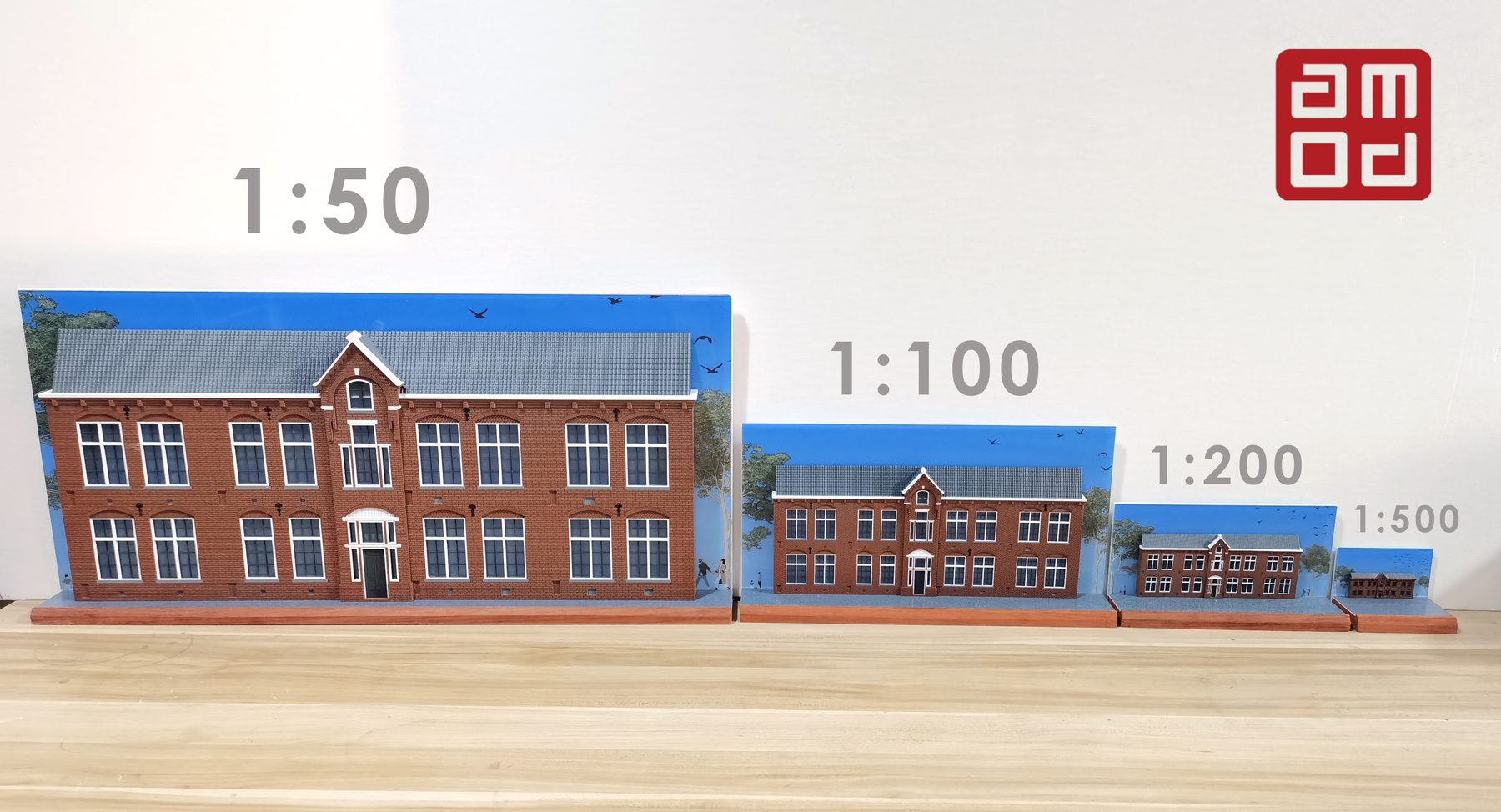

The school

Facade Slice · 1:50 → 1:500

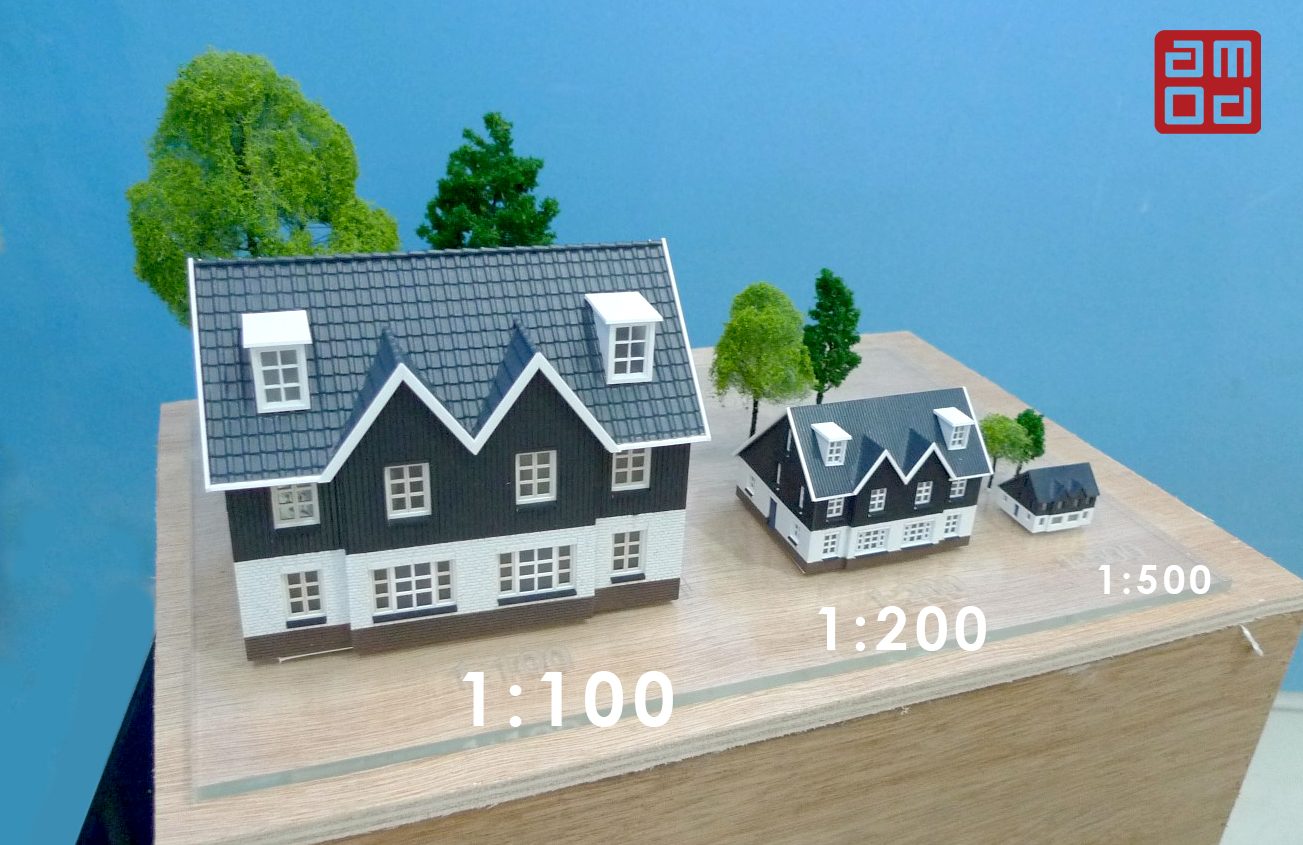

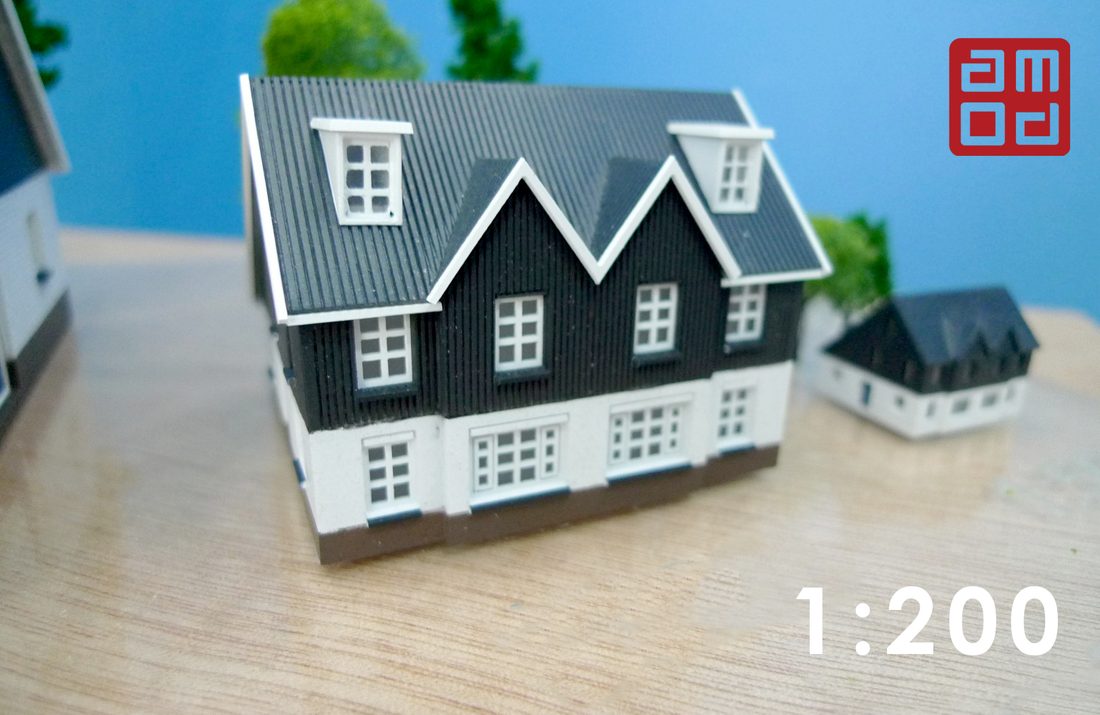

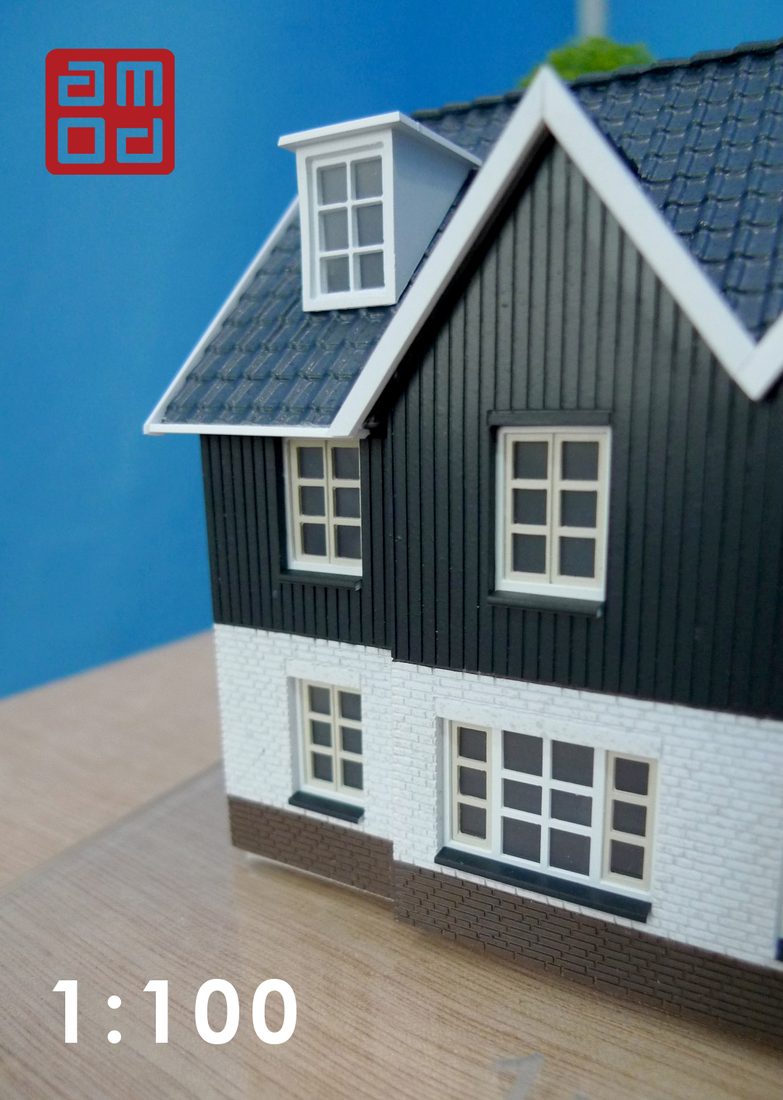

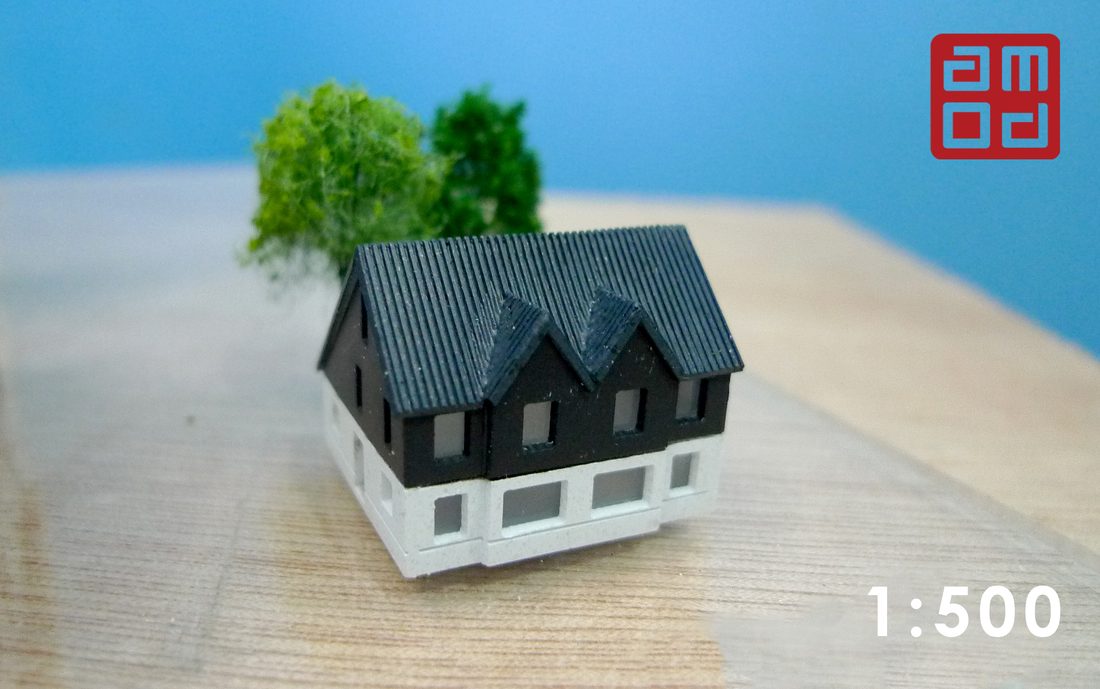

The villa

Full building model · 1:100 → 1:500

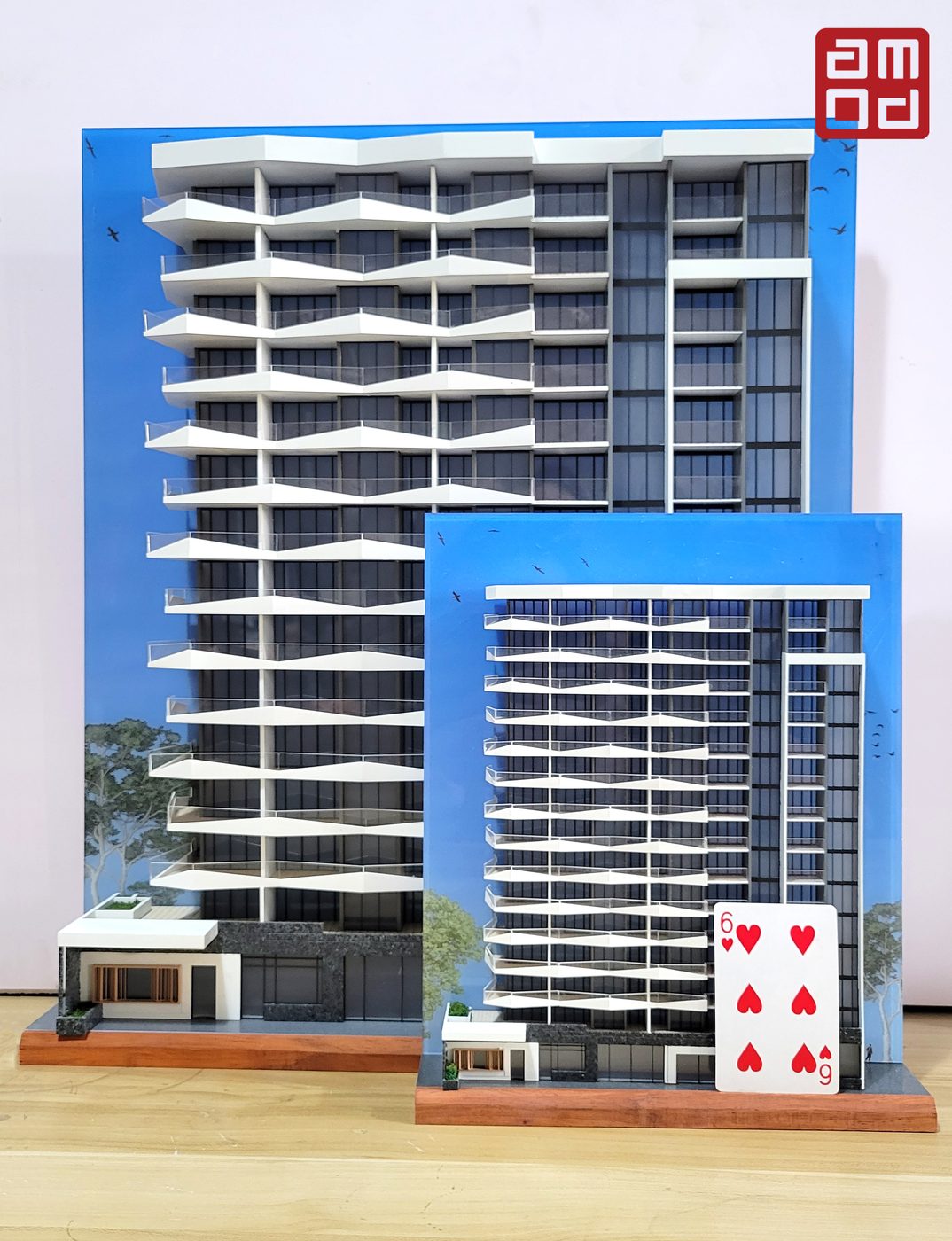

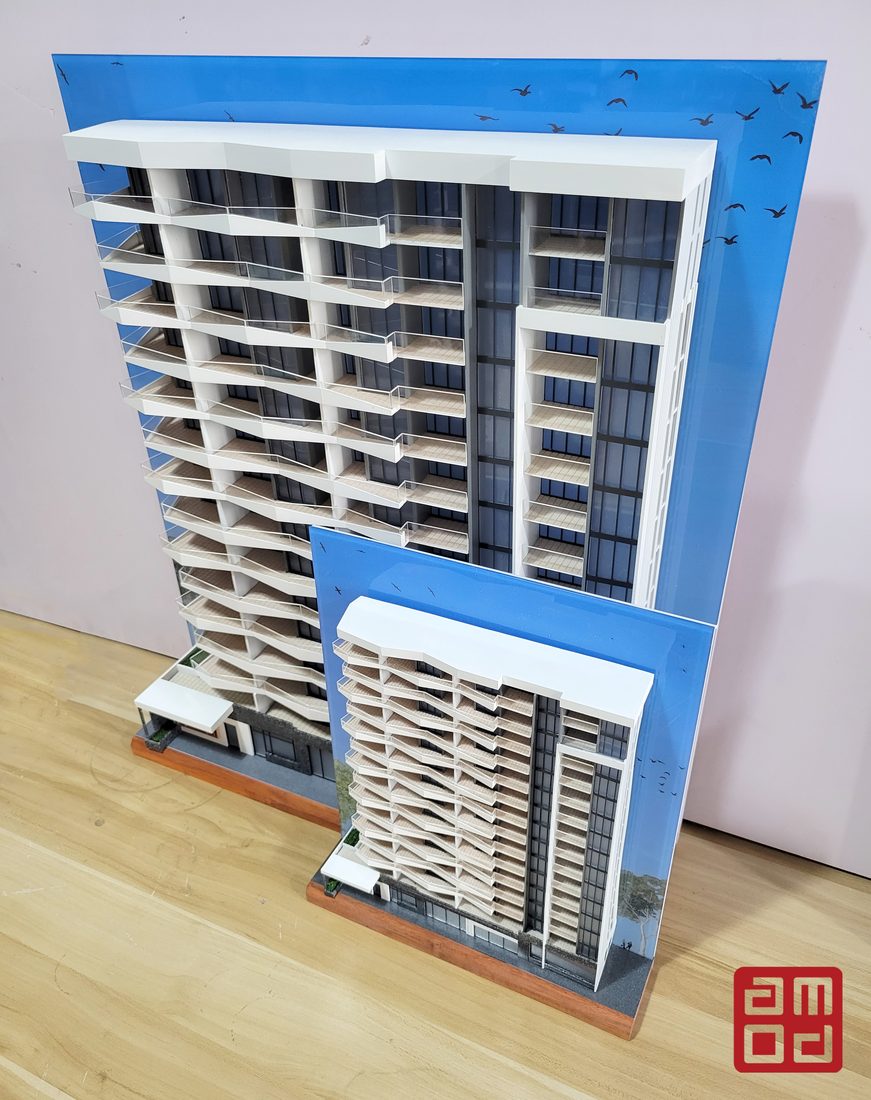

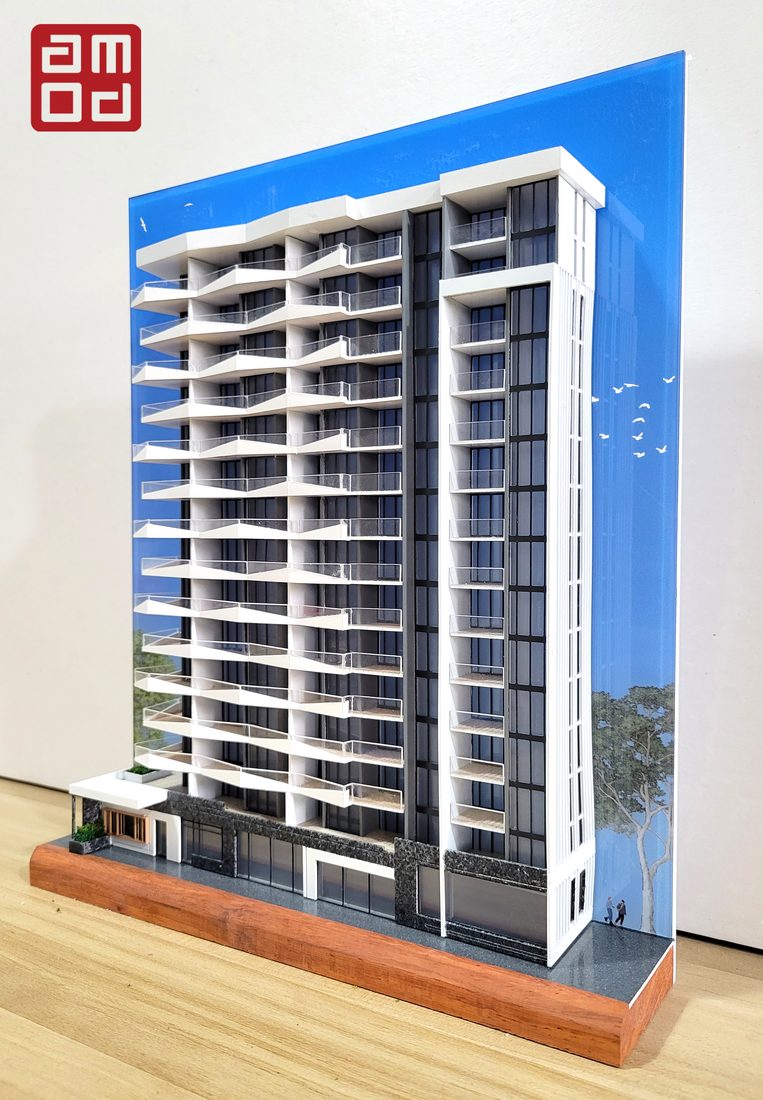

The tower

High-rise Slice · 1:100 & 1:200
03Choosing a scale

The right scale
changes everything

I

1:25 to 1:50 — the museum piece

Individual bricks, mullions and ornament, each modelled and casting its own shadow. The scale for heritage pieces and detail studies, where people lean in close.

II

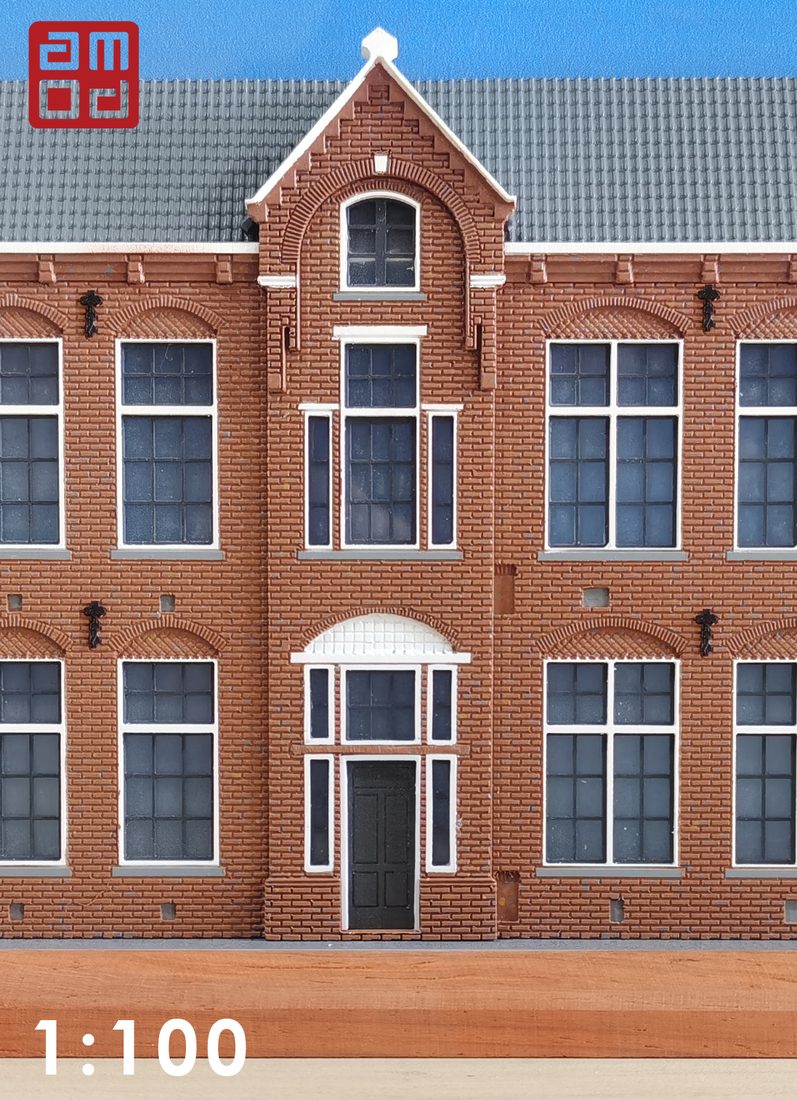

1:100 — the workhorse

A standard door is 1 × 2 cm and roof tiles are still modelled. The scale most single buildings and facades are built at, and the default for an AMOD Slice.

III

1:200 to 1:300 — the sales model

Large buildings and towers at a size that still fits a boardroom table. Texture becomes surface rather than relief; volume and rhythm carry the building.

IV

1:500 to 1:1000 — the masterplan

Urban blocks, campuses and districts, where the relationships between buildings matter more than their brickwork. Zagreb Airport was built at 1:1000.

Scale by purpose

What the model is forUsual scaleWhat a visitor seesIn our archive
A museum piece, a heritage building, an interior1:25 to 1:50Bricks, mullions, ornament, furniture. People lean in close.4 of the 6 museum models and 4 of the 6 interiors were built at 1:25.
Selling homes in one building1:75 to 1:100Front doors, balconies, which apartment is which.12 of the 24 residential models were built at 1:75 or 1:100.
Selling homes in a block or tower, a hotel or resort1:200 to 1:300The whole building or complex, its gardens and its street.10 more residential models, and 5 of the 7 hotels, were built at 1:200 or 1:300.
An office, mixed-use or commercial scheme in its street1:200 to 1:500Massing, the street and the neighbours.11 of the 16 commercial models were built at 1:200 or 1:500.
A masterplan, campus or district1:500 to 1:1000Blocks, streets, water, the phases of the plan.4 of the 5 planning models were built at 1:500 to 1:1000.
An airport or a city area1:1000 and smallerThe plan as a whole; buildings as volumes.Zagreb Airport was built at 1:1000.

Counted from the 73 projects on this site. The room decides too: the sales model planner finds the largest scale that fits a display suite.

04Every scale, drawn

One page
per scale

A person, a door, a car, a storey and a train, drawn at true size for each scale, with conversion tables and the models built at it. Architecture above the line, model railway below.

05Questions

On scale

How do you calculate the size of a scale model?

Multiply the building's real size in metres by 100 to get centimetres, then divide by the scale denominator. A 20-metre-wide building at 1:100 is 20 × 100 ÷ 100 = 20 cm wide. The same building at 1:200 is 10 cm, and at 1:50 it is 40 cm. The calculator above does this for every scale at once.

How big is a 1:100 scale model?

At 1:100, every metre of the real building becomes one centimetre of model. A 20 × 15 metre facade becomes a 20 × 15 cm model. A standard door of 1 × 2 metres becomes 1 × 2 cm. At this scale individual roof tiles and bricks are still modelled, which is why 1:100 is the most common scale for a single building.

Which scale should I choose for my model?

Choose by what you want people to see. 1:25 to 1:50 is for museum pieces and detail studies, where brickwork and ornament are individually modelled. 1:100 is the workhorse scale for a single building or facade. 1:200 to 1:300 suits larger buildings and towers, where texture becomes surface rather than modelled relief. 1:500 to 1:1000 is for urban blocks, campuses and masterplans, where the relationships between buildings matter more than their materials.

What is the largest model you can make?

A framed AMOD Slice — a single facade elevation — is capped at 90 cm on its longest side, because it ships as a framed piece. Full building models commissioned directly have no such limit: models have been built at 1:25 for museums and at 1:1000 for entire airports and city districts.

What detail is lost at smaller scales?

At 1:50 individual bricks, window mullions and ornamental brickwork are separately modelled and cast shadows. At 1:100 brick coursing and roof tiles are still modelled but finer. At 1:200 brickwork becomes painted texture rather than relief, and ornament is simplified to its silhouette. Below 1:500 a building reads as massing: roof shape, window rhythm and volume. The photographs above show exactly this progression on one building.
